Тумблер-сиреер

Получить цену

Описание

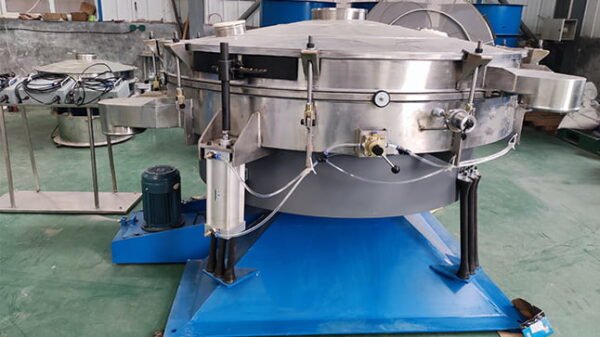

Overview of Tumbler Screener:
Tumbler screener is also called tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc. The simplest sieving is using your hands with the staring of your eyes. Tumbler screening machine is the mechanical simulation for this. Swinging sieve is the most effective screening machine that simulates the principle of artificial screening. The screening accuracy, efficiency and screen service life are 5~10 times of regular round vibrating sieve machine. It conforms to all fine and ultra-fine powder and granular materials, especially suitable for materials which are difficult to classify.
Tumbler sieve is often used to screen xylitol, food additives, citric acid, EPS, PAA, PVC, glass beads etc.

Working Principle of Tumbler Screener:

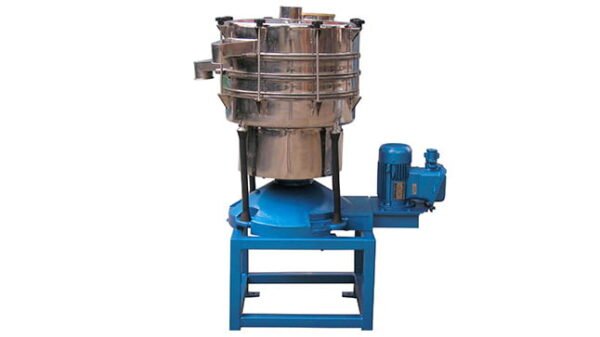

tumbler screener
The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.
According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.
tumbler screen movement
tumbler screen movementtumbler screen movement
Application of Tumbler Screener:
Chemical, food and spices, plastics and Synthetic Resin, mining, medicine, wood and plywood, metallurgy, feed, rubber, fodder, fertilizer, sugar, salt, renewable industry and so on.

Features of Tumbler Screener:
1. Soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity. It is the best choice for material that is flammable, explosive and easy to generate static. And effectively extend the life of equipment parts.
2. with circular building block type assembling structure, easy assembly and disassembly. The discharge port is free to rotate 360 degrees.
3. Can be used up to 7 layers, can produce up to 8 particle sizes.
4. The screen structure is diverse. It can be not only spliced, but also integrally bonded.
5. The vertical direction acceleration value of the material particles is low, so that the screen mesh is not easy to damage, prolonging the service life of the screen.

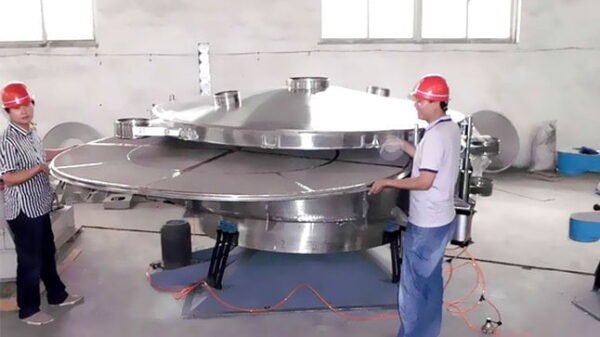

6. large-scale screening machine can be installed pneumatic lifting device to reduce the difficulty of screen replacement.
7. he noise is low to 75dB. Fully enclosed and more environmentally friendly.

Mesh Cleaning Method for Tumbler Screener:

1. Bounce Ball + PU Ring Cleaning

2. Brush Cleaning Device
brush cleaning

3. Compressed Air Cleaning Device (Jet Airflow Cleaning)
airflow cleaning

4. Jet Airflow + Brush Cleaning
brush cleaningairflow cleaning

5. Elastic Scraper Cleaning
scraper cleaning

6. Ultrasonic Technology Cleaning
ultrasonic cleaning

Technical Parameters of Tumbler Screener:
tumbler screener

Модель600950120014001600170020002100230026002900
Screen Area Per Layer0.28m20.72m21.10m21.50m21.80m22.30m22.60m23.40m23.90m25.30m26.40m2
Net Site Area0.36m21.20m21.57m22.20m22.50m23.20m23.54m24.60m25.30m26.76m28.60m2
Слои1, 2, 3, 4, 51, 2, 3, 4
Cleaning SystemOptions: rubber ball, brush, compressed air, brush and compressed air, ultrasonic, scraper
Motor Drive Power0.25KW1.5KW1.5KW2.2KW2.2KW4.0KW4.0KW4.0KW4.0KW5.5KW5.5KW
Height/Weight (mm/kg)
Single Layer758/
132
987/
350
1223/
420
1359/
810
1484/
820
1371/
900
1534/
920
1441/
1450
1450/
1490
1774/
1525
1488/
1675
2 Layers837/
142
1106/
400
1381/
480
1498/
880
1642/
890
1510/
980
1692/
990
1580/
1530
1589/
1575
1967/
1660
1627/
1790
3 Layers916/
152
1225/
450
1539/
520
1637/
950
1800/
960
1649/
1070
1850/
1080
1719/
1650
1728/
1700
2160/
1810
1766/
1940
4 Layers995/
162
1344/
510
1697/
590
1776/
1030
1958/
1040
1788/
1140
2008/
1150
1858/
1760
1867/
1825
2353/
1960
1905/
2090
5 Layers1074/
172
1463/
580
1855/
660
1915/
1110
2116/
1120
1927/
1220
2166/
1230
1997/
1890
2006/
1975
2546/
2130
